Route MoonPay iOS buys through a Private Relay interstitial check

[j0ntz]

Technical Design Document

moonpay-private-relay-interstitial.md

CHANGELOG

Does this branch warrant an entry to the CHANGELOG?

• Yes
• No

Dependencies

EdgeApp/edge-info-server#160 (soft dependency: without it the app falls back to today's bound flow, so this PR is safe to land first)

Requirements

If you have made any visual changes to the GUI. Make sure you have:

• Tested on iOS device
• Tested on Android device
• Tested on small-screen device (iPod Touch)
• Tested on large-screen device (tablet)

No visual changes: the buy flow's screens are unchanged; only the URL handed to the external Safari view differs.

Description

Asana task

Closes the iCloud Private Relay gap in the MoonPay iOS buy flow. iOS buy opens the widget in an SFSafariViewController whose traffic can egress through Private Relay, so the widget URL bound to the app-fetch IP mismatches what MoonPay observes for relay users; once MoonPay enforces IP matching, those buys fail with an Unverified Connection error.

• iOS buy now asks the info server for a relay-check interstitial URL (fetchMoonpayInterstitialUrl) and opens that in the Safari view. The server observes the Safari view's own egress and 302s to the widget URL signed with the IP binding when the addresses agree, or without it when they diverge (relay detected). The app never handles an IP.
• Any interstitial failure (server without relay-check support, network error, malformed response) falls back to today's bound flow, so this cannot regress buys even against un-upgraded servers.
• Sell and Android buy are untouched (app networking stack / Custom Tabs; relay never applies).
• MOONPAY_RELAY_CHECK_SIGN_PROXY (env.json, dev builds only, __DEV__-gated) reroutes the one relay-check POST through an alternate egress so the unbound branch is reproducible on a simulator.
• The TDD linked above documents both repos' changes, including the token design and the outcomes matrix.

The physical-device pass (iCloud+ account with Private Relay enabled) is a manual item; MoonPay IP-match enforcement for our key stays off until it completes.

---

Note

Medium Risk
Changes the critical fiat on-ramp URL path for all iOS MoonPay buys; fallback to bound signing limits regression risk if the info server is behind.

Overview
iOS MoonPay buys no longer open a directly IP-bound signed widget URL in SFSafariViewController. They call fetchMoonpayInterstitialUrl (relayCheck: true) so the info server can compare app vs Safari egress and redirect to a bound or unbound signed widget. Any failure (old server, network, bad response) falls back to signMoonpayUrl as today.

Android buy and sell still use the direct bound signing path only.

Adds MOONPAY_RELAY_CHECK_SIGN_PROXY in envConfig (dev-only via __DEV__) to route the relay-check POST through alternate egress for simulator testing of the unbound branch.

CHANGELOG entry and src/docs/moonpay-private-relay-interstitial.md document the cross-repo design (depends on edge-info-server#160).

^{Reviewed by Cursor Bugbot for commit aab11af. Bugbot is set up for automated code reviews on this repo. Configure here.}

[j0ntz]

📸 Test evidence

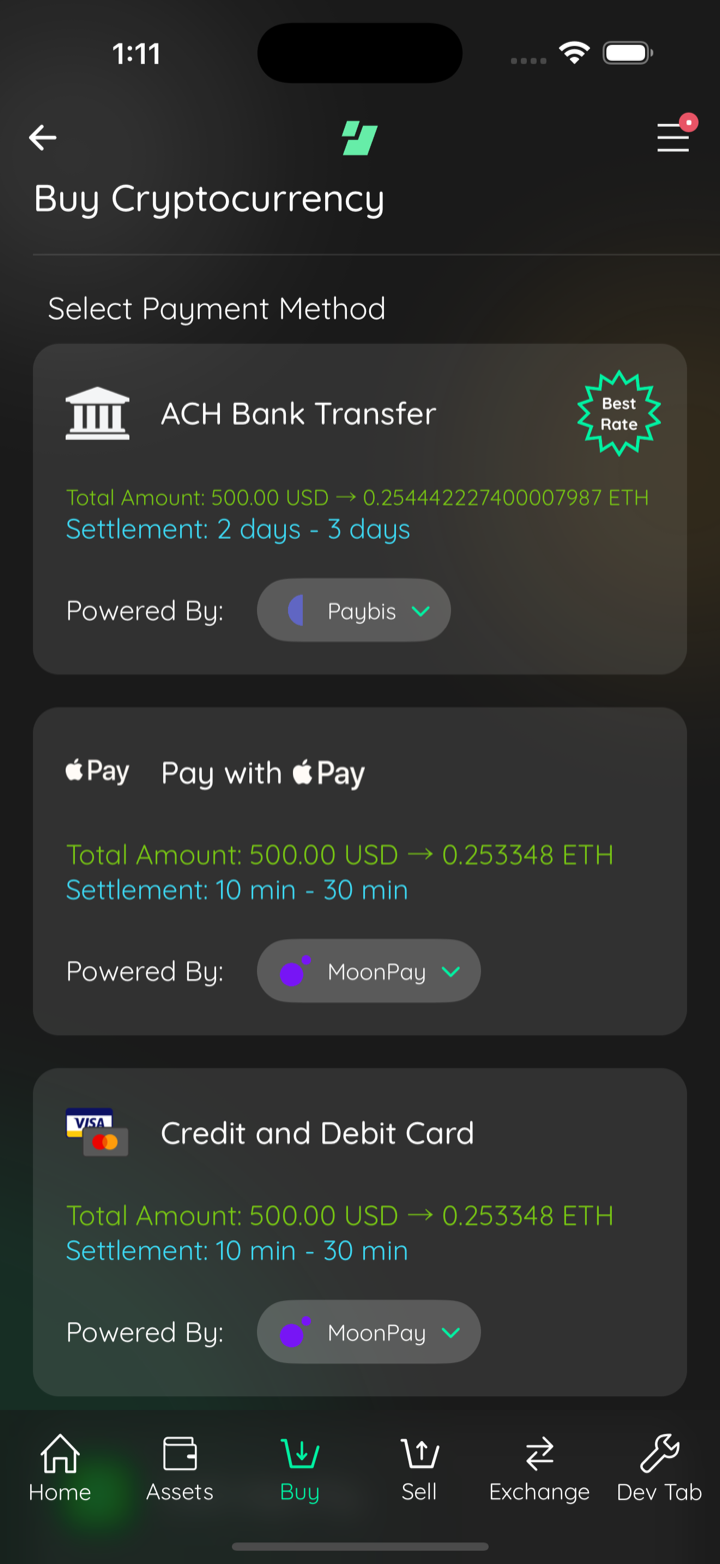

moonpay buy quotes

safari widget fallback bound

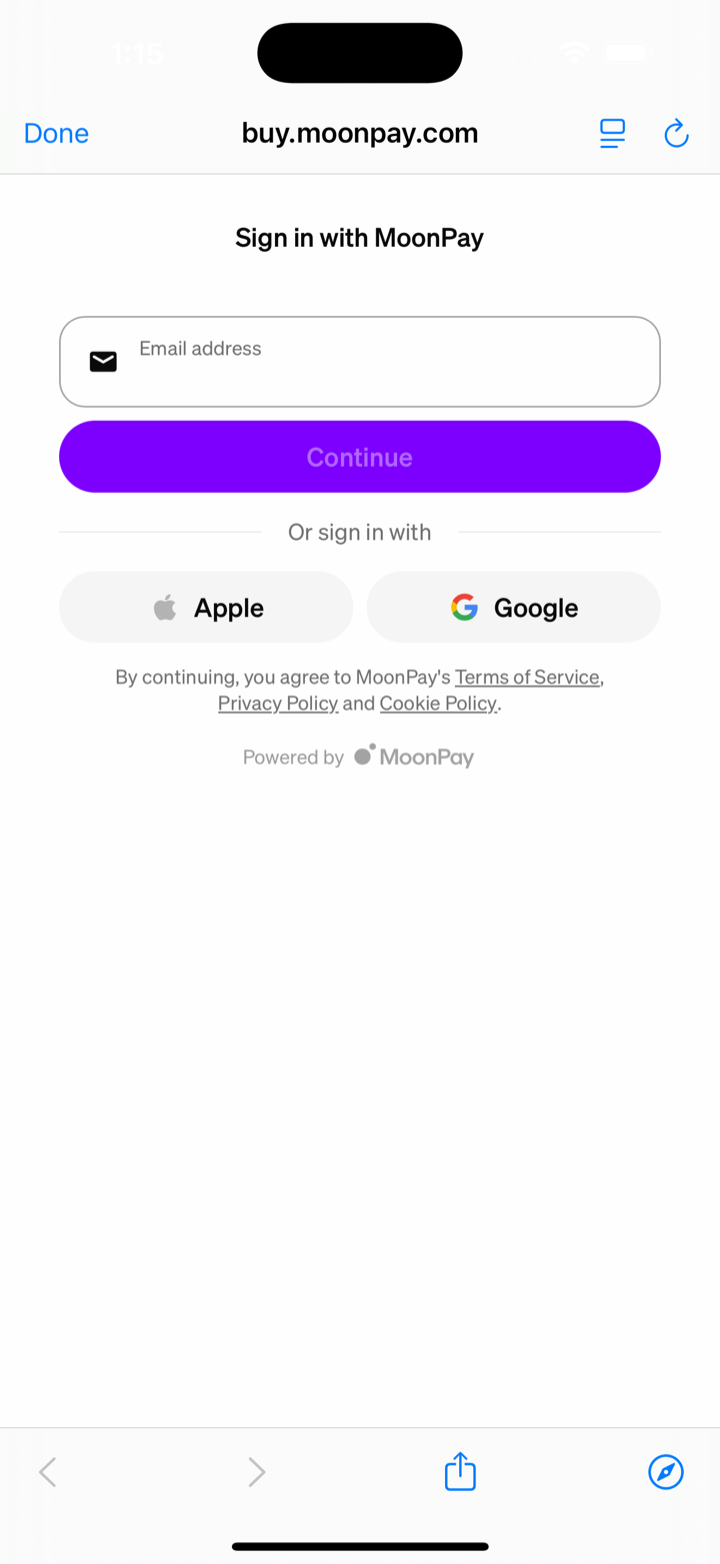

safari interstitial unbound

Captured by the agent's in-app test run (build-and-test).
