embedded-gui

crates.io docs.rs CI License: MIT OR Apache-2.0

embedded-gui is a lightweight, deterministic, zero-allocation (no_std) GUI & HUD framework for microcontrollers and embedded-graphics displays.

Heavily inspired by modern wearable and smartwatch UI frameworks—its animation model, interaction contracts, and cinematic motion primitives draw from fluid, tactile embedded design patterns for widget composition, layout rules, and state-variant styling.

Key Capabilities

  • Zero-Allocation (no_std): Built entirely on fixed-capacity data structures (heapless) with strict memory bounds and deterministic execution times.
  • Declarative KDL GUI Markup & Codegen: Author complex UI screens in clean KDL markup and compile directly into zero-allocation #![no_std] Rust code at build time with include_gui! or gui_kdl!.
  • 2D Grid Layout Engine: CSS-style track resolution ("140px 1fr 2fr auto"), cell placement, and multi-track spans (col_span, row_span).
  • Rich Built-in Widgets: Buttons, Sliders, Dropdowns, Toggles, Checkboxes, Gauges, Meters, Sweeping Arcs, Plotters/Charts, TextAreas, On-Screen Keyboards, and Circular Lists.
  • Native Custom Widgets: Extensible third-party widget support via type-erased WidgetStorage<'a> and object-safe Widget trait contracts.
  • Unified Motion Engine: Tactile spatial easing curves (moook), spring dynamics, timeline keyframing, property mutator bindings, and screen stack transitions (flip-card, peek/glance, shutter, portal).
  • Decoupled Rendering Engine: Bounding-box dirty tracking, opacity layering, software IIR blur, subpixel anti-aliasing, and custom display backends.
  • Async DMA & Double/Triple Buffering: Zero-copy presentation via CompletionSlot and StandardSwapChain, fully compatible with Embassy async/await or bare-metal superloop polling.
  • Multi-Target Tested: Continuously verified across ARM Cortex-M0/M0+ (thumbv6m), Cortex-M4F/M7F (thumbv7em), Cortex-M33/M55 (thumbv8m.main), and RISC-V (riscv32imac).

Quick Start

1. Declarative KDL Markup (New in v0.2.1)

Author your UI screen in declarative KDL (ui/dashboard.kdl):

screen id="Dashboard" width=320 height=240 theme="dark" {
    grid cols="140px 1fr" rows="24px 1fr 48px" gap=6 padding=8 {
        banner col=0 row=0 col_span=2 text="Living Room Climate"
        spinbox id="TempSetpoint" col=0 row=1 min=100 max=350 value=225 digits=4 decimals=1
        scale id="RoomGauge" col=1 row=1 mode="radial" min=10.0 max=40.0 value=22.5
        button id="FanBtn" col=0 row=2 text="FAN HIGH"
        toggle id="EcoMode" col=1 row=2 checked=true
    }
}
Generated KDL Screen Render
Zero-Allocation Result: 2D Grid Layout, decimal spinbox, tachometer scale, button, and toggle compiled directly into pure no_std Rust.

Include and compile directly into zero-allocation #![no_std] Rust code:

use embedded_gui::prelude::*;

// Embeds and compiles the KDL file at build time into DashboardApp and DashboardWidgets
include_gui!("ui/dashboard.kdl");

fn main() {
    let mut gui = GuiContext::<64, 32, 16>::new(Rect::new(0, 0, 320, 240));
    let app = DashboardApp::build(&mut gui).expect("failed to build UI");

    // Strongly-typed widget IDs generated automatically:
    // app.widgets.room_gauge
    // app.widgets.temp_setpoint
    // app.widgets.fan_btn
    // app.widgets.eco_mode
}

For complete syntax, full widget catalog, and styling options, see the Declarative KDL GUI Codegen Guide.

2. Programmatic Fluent Builder API

use embedded_graphics::pixelcolor::Rgb565;
use embedded_gui::prelude::*;

// 1. Create a fixed-capacity GUI context (Max Widgets, Focus Group Capacity, Dirty Rects)
let mut gui = GuiContext::<16, 4, 8>::new(Rect::new(0, 0, 320, 240));

// 2. Spawn widgets using the fluent builder pattern
let status_label = gui.spawn(
    WidgetBuilder::new(Rect::new(10, 10, 150, 20))
        .with_style_class("header")
        .build()
)?;

// 3. Mutate properties dynamically using the generic property engine
gui.set_widget_property(status_label, PropertyKey::Text, PropertyValue::Text("SYSTEM OK"))?;

// 4. Render only dirty regions to your embedded-graphics DrawTarget
gui.render(&mut display)?;

Visual Showcase

Grand Showcase: 2D Grid Layout, Rich Controls & Vector Béziers

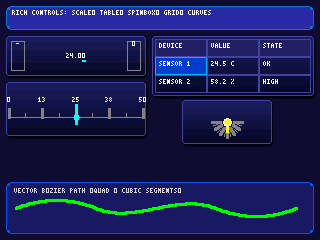

Zero-allocation 2D GridLayout (fractional fr & fixed px tracks), radial tachometer & linear graduated scales, interactive table grid with cell navigation, precision decimal spinbox, and stroked Bézier vector paths.

Grand Showcase: Rich Controls, 2D Grid, and Bézier Curves



Accelerated Graphics Pipeline & Frosted Glass Smart Home & Industrial IoT Telemetry Dashboard
Frosted Glass Pipeline

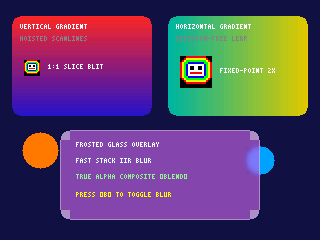

Hardware-accelerated 2D pipeline: Moving IIR frosted glass blur overlays, alpha linear/radial gradients, and scanline blits. 		Smart Home Dashboard

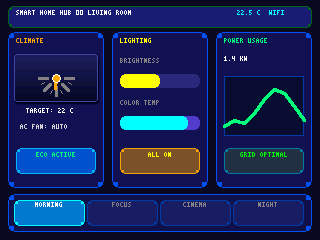

Glassmorphic IoT Dashboard: HVAC radial gauges, color temperature sliders, live power sparkline curve with area fills.
Wearable Subsystems, Pickers & Status Bar Fluid Cinematic Transitions & Card Story Deck
Wearable Suite

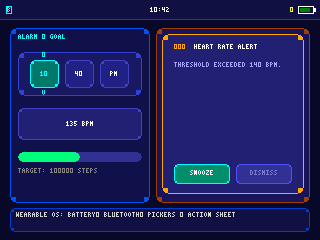

Wearable OS: Real-time status bar (charging battery, Bluetooth, clock), 12h/24h time picker, number roller, and action dialogs. 		Cinematic Transitions

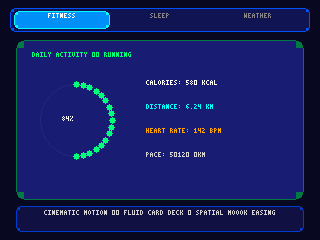

Cinematic Motion: Spatial moook easing, 3D card story transitions, daily fitness rings, and sleep stage bar charts.

Feature Architecture

1. Widgets & Layouts

  • Controls: Buttons, Icon Buttons, Sliders, Toggles, Checkboxes, Dropdowns, Rollers.
  • Data & Display: Progress Bars, Gauges, Meters, Sweeping Arcs, Plotters/Line Charts, Bar Charts, Busy Wheels.
  • Structure & Layout: Linear Layouts (Row/Column with spacing & constraints), Panels, Tabs, Cards, Dialogs, Circular Lists.
  • Input & Text: TextAreas (word wrap, selection, undo/redo), On-Screen Keyboards.

2. Motion Framework (src/motion/)

  • Easing & Physics: Standard Easings (Linear, Quad, Cubic, Sine, Exponential) + Spatial Easing (moook_curve), Spring Physics, Inertia.
  • Timelines & Keyframes: Multi-track property keyframing and sequence controllers.
  • Screen Stack Transitions: Slide, Fade, Portal, Shutter, Modal Overlay, Round-Flip Card.

3. Render Engine (src/render/)

  • Dirty Region Tracking: Merges overlapping invalidate rectangles to minimize SPI/I2C/Parallel bus transfers.
  • Compositing: Software alpha blending, opacity stacks, subpixel anti-aliasing, and IIR blur filters (RGB565, RGBA8888, GRAY8).

4. Input & Semantics (src/input/)

  • Multi-device event mapping: Rotary Encoders (CW/CCW/Press), D-Pad/Keyboards (Arrow keys, Select, Back), Touch/Pointer (Tap, Long Press, Drag, Flick).
  • Configurable per-widget focus navigation, raw key policies, and event routing phases (Capture, Target, Bubble).

Documentation & Guides

Detailed architecture specifications and integration guides are available in docs/:

Examples Directory

The repository includes showcase examples categorized under examples/:

Directory Purpose & Highlights
examples/basics/ Core layout rules, custom font drop-in interop, dashboard layout, form flows, interaction semantics, raw key input, and keyboard navigation (custom_font_showcase.rs, dashboard_app.rs, complex_layout_showcase.rs).
examples/widgets/ Comprehensive widget showcases, gauges, sweeping arcs, alpha blending, and visual quality benchmarks (widgets_showcase.rs, visual_quality_showcase.rs, sweeping_arc_widget_showcase.rs).
examples/motion/ Motion framework, spring physics, dirty-region animation, timeline keyframing, and cinematic peek/glance cards (animation_motion_showcase.rs, cinematic_peek_glance_carddeck_showcase.rs).
examples/integrations/ Third-party interop, Embassy async frames, DMA swapchain simulation, and 3D graphics overlays (embassy_gui_frame.rs, completion_swapchain_sim.rs, embedded_3dgfx_overlay.rs).

Run any example using Cargo:

cargo run --example dashboard_app --features std
cargo run --example animation_motion_showcase --features std

Cargo Features

Feature Description
embedded-graphics (Default) Transparent support for embedded-graphics MonoFont references (&FONT_6X10, &FONT_9X15) in styles and text rendering.
libm Provides floating-point math support (f32::sin, cos, round, sqrt) when building for no_std targets without standard library floats.
rich-widgets Enables advanced visual widgets including Gauges, Plotters, TextAreas, and On-Screen Keyboards.
embedded-text Enables interoperability adapters for embedded-text TextBox.
embedded-layout Enables interoperability adapters for embedded-layout View alignment.
embassy Adds EmbassyWaitTransfer and FrameClock for Embassy async executor integration.
triple-buffering Enables triple-buffer swapchain for bursty display frame rates.

v0.2.0 Breaking Changes & Migration

Version 0.2.0 introduces a flexible, trait-based font system supporting custom raw bitmap arrays (BitmapFont) and dynamic font providers (Font trait):

  • FontId Enum Variants: Added FontId::Bitmap(&'static BitmapFont) and FontId::Dynamic(&'static dyn Font). Exhaustive match statements on FontId must include these new variants or a wildcard fallback arm (_ => ...).
  • Non-const Geometry Methods: FontId::advance() and FontId::line_height() are now standard fn methods instead of const fn to allow dispatching to dynamic trait references.
  • Enhanced CustomFont Support: Legacy 3x5 PackedFont usage can be upgraded to the new BitmapFont struct (BitmapFont::new_8x16, new_8x8, or custom dimensions) for arbitrary glyph sizes and fill_rect span acceleration.

License

Dual-licensed under either of:

at your option.
